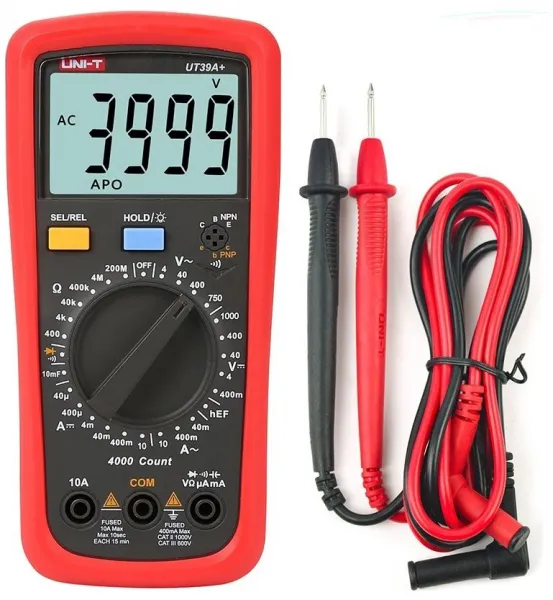

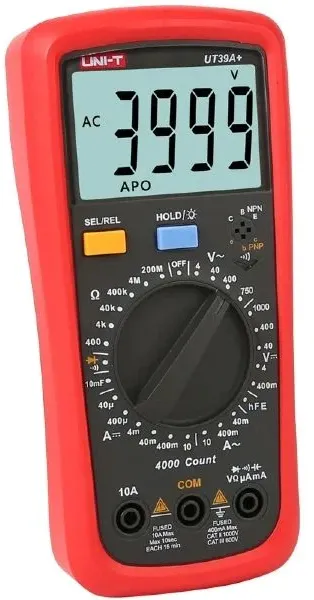

Uni-t Ut39a+ Digital - 17309

Working Method
Digital
Protection Class
Cat Ii 1000v
Automatic Measurement
YesYes
Screen Size Value
4,000 Counts
Ac Voltage (low)
4000 Mv
Ac Voltage (high)
750v
Dc Voltage (low)
400 Mv
Dc Voltage (high)
1000v

SPECIFICATIONS

GENERAL FEATURES

Usage Type
Portable
Device Type
Multimeter
Working Method
Digital
Protection Class
Cat Ii 1000v
Cat Iii 600v
Automatic Measurement
YesYes
Resistance Meter
YesYes
Frequency Meter
NoNo
Capacitance Meter
YesYes
Thermometer
NoNo
Screen
YesYes
Screen Size Value
4,000 Counts
Display Lighting
YesYes
Power Supply
Replaceable Battery

PHYSICAL PROPERTIES

Physical Endurance
Impact Resistant
Height
175mm
Width
83mm
Depth
53mm
Weight
330g

MEASURING RANGES

Dc Voltage (low)
400 Mv
Dc Voltage (high)
1000v
Ac Voltage (low)
4000 Mv
Ac Voltage (high)
750v
Current (low)
0.04ma
Current (high)
10 A
Resistance (low)
400 Ohms
Resistance (high)
200 Mω
Capacitance (low)
4nf
Capacitance (high)
10mf
